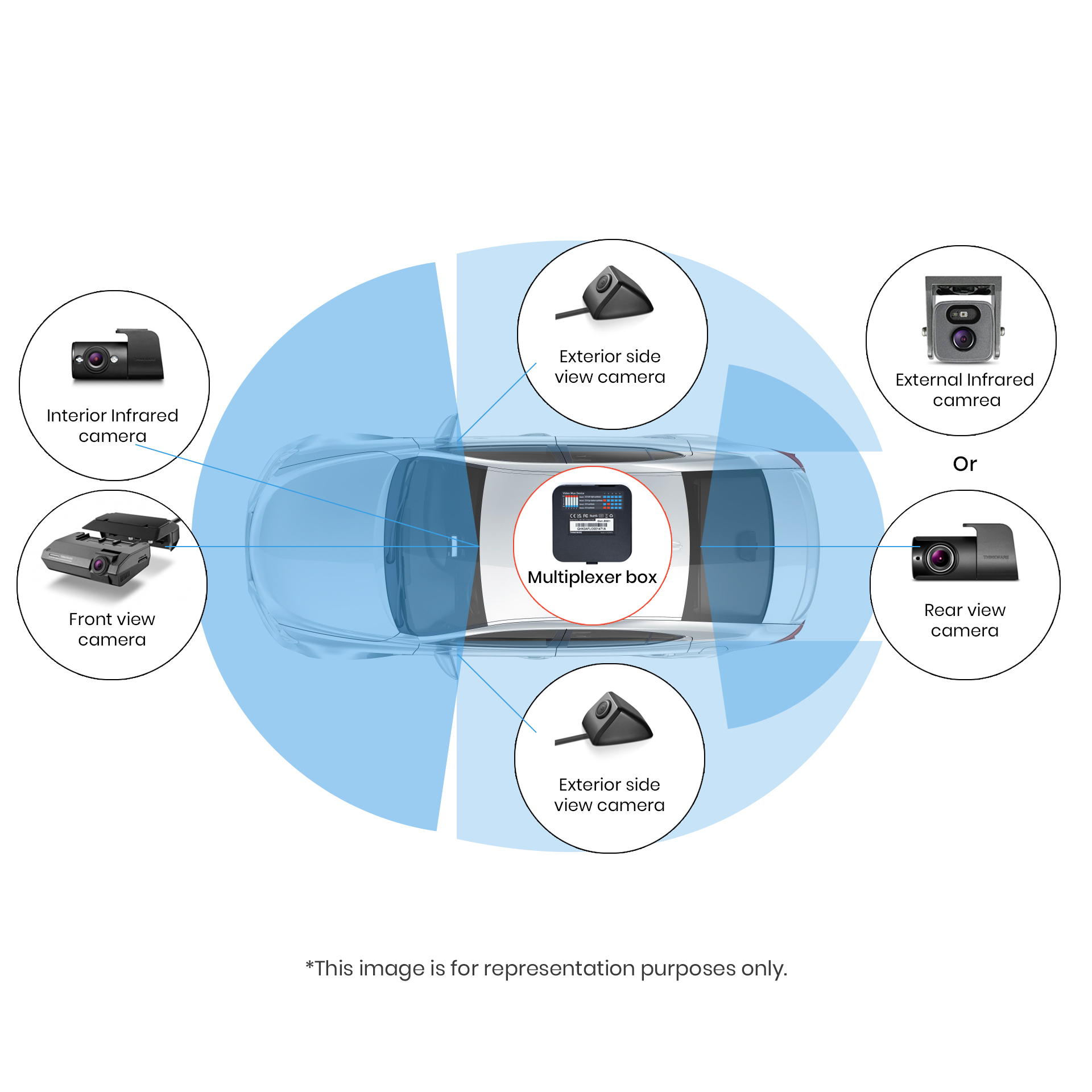

• Multiplexer box 800x800.jpg
  • Multiplexer box 800x800-3.jpg
  • Multiplexer box 800x800-1.jpg
  • Multiplexer box 800x800-2.jpg
  • Multiplexer box 800x800-4.jpg

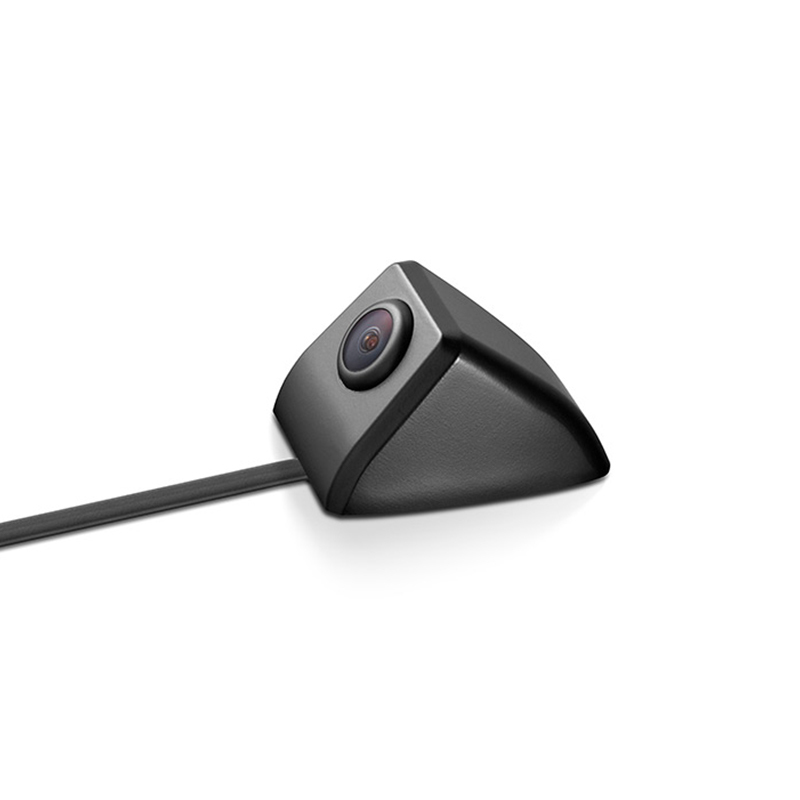

  • Multiplexer box Exterior side  view camera

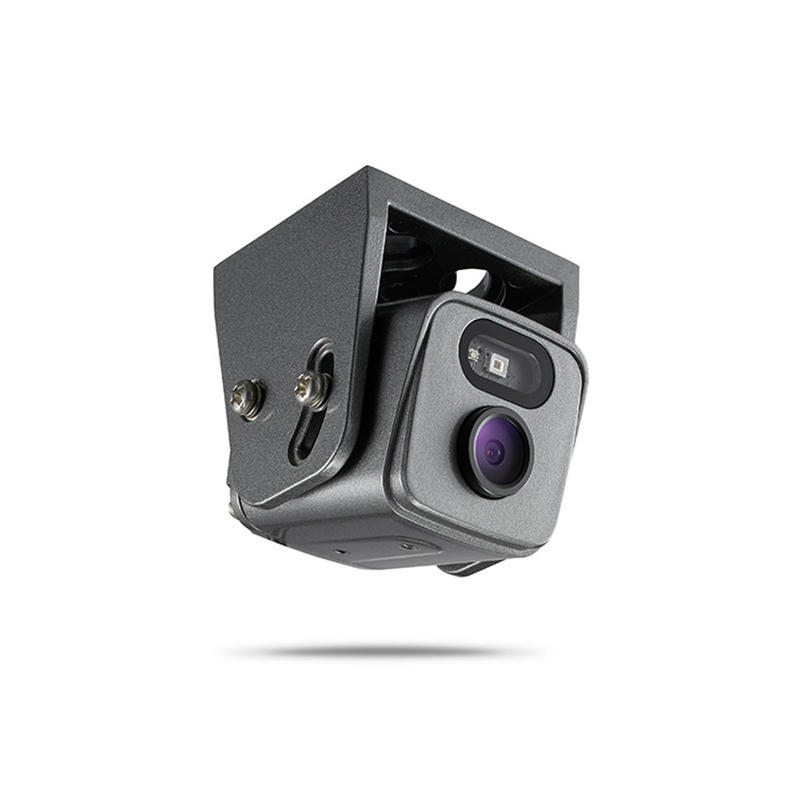

  • Multiplexer box External Infrared  camrea
  • Multiplexer box Interior Infrared Camera
  • Multiplexer box 800x800-5
  • MULTIPLEXER BOX PACKAGE A
  • MULTIPLEXER BOX PACKAGE B
  • MULTIPLEXER BOX PACKAGE C
  • MULTIPLEXER BOX PACKAGE D
  • MULTIPLEXER BOX PACKAGE E
1/14

Thinkware Multiplexer Box MB-100 & Cameras Set︱Q200︱Q850︱F790︱T700

Regular price
RM 1,500.00
Sale price
RM 1,500.00
Regular price
RM 0.00
Secure payments | Sicurez Automotive Solution
Secure payments
Atome Buy Now Pay Later | Sicurez Automotive Solution
Atome Buy Now Pay Later
Local Warranty | Sicurez Automotive Solution
Local Warranty
Professional Installation | Sicurez Automotive Solution
Professional Installation

Features

Multiplexer Box-1.jpg

Multiplexer Box-2.jpg

Multiplexer Box-3.jpg

Multiplexer Box-4.jpg

Multiplexer Box-5.jpg

Specification

  • Compatible With: F200PRO, F790 and T700 Dash Cam Models
  • Resolution: FHD (1920x1080) 30FPS (outputs single video file, supports 1-4 recordings per file)
  • Key: Piano Code Switch (No. of recording channels is set by switch setting):
    • Mode 1: 2CH Left - Right Synthesis
    • Mode 2: 2CH Top - Bottom Synthesis
    • Mode 3: 3CH Synthesis
    • Mode 4: 4CH Synthesis
  • Power:
    • Voltage: DC 12 V - 24V
    • Yellow Cable: Power (Constant - Parking Mode / Accessory - No Parking Mode)
    • Black Cable: Ground
  • AV-IN (for connection to optional cams):
    • Total Inputs: 4 (CAM 1, CAM 2, CAM 3, CAM 4)
    • Connection: 2.5 Stereo-Jack Type
    • Cable Length: 15cm (per connection)
  • AV-OUT (for connection to dash cam)
    • Connection: 2.5 Stereo-Jack Type
  • Temperature Range:
    • Operating: -10C to 60C
    • Storage: -20C to 70C
  • Dimensions: 65W x 65D x 17.5H mm
  • Weight: 40G
  • Note:
    • Up to 4 cameras can be connected to the module. A single FHD video file will be produced with up to 4 recordings within the single file.
    • Optional cameras are not included.
